Description
SP-36A-L1430

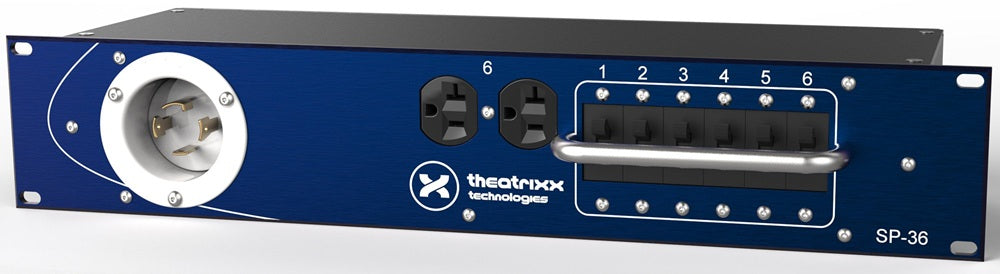

The Theatrixx Small Pack Series was developed to fulfill the needs of small installations of rack mounted audio modules. The compact size of this two rackmount unit distribution system and its reduced depth allows it to be installed at the bottom of an amplification rack with minimal interference on internal hook-up. The front panel is cut from a thick 3/16″ aluminum sheet and is fixed to a robust steel chassis. This product can also be adapted for other types of applications.
This unit can be used in conjunction with the standard CD112A, LD236A or any custom built distro with TL4 30A 120/240V outputs.
Specifications
Input
Connector: L14-30 Flanged Inlet
Breaker: No
Thru
Connector: No
Outputs
Connectors (Front Panel): 1x 5-20 Duplex

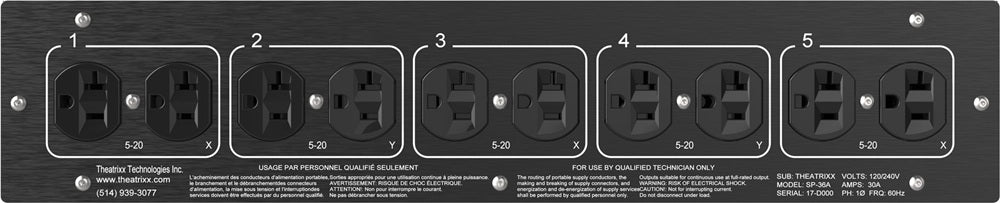

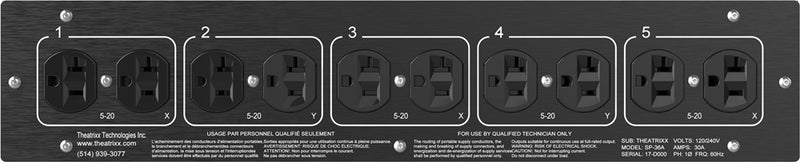

Connectors (Back Panel): 5x 5-20 Duplex
Breakers: 6x 20A 120V Circuits
Features
Breaker Protector: Yes
Enclosure construction: Robust steel housing
Dimensions
Height: 88.90 mm (3.50″) – 2RU
Depth: 173.65 mm (6.84″)
Width: 482.60 mm (19.00″)
SP36A-L1430
